The physical structure of the joystick sensor model

Date:2018-03-14 09:55:54        Hits:397

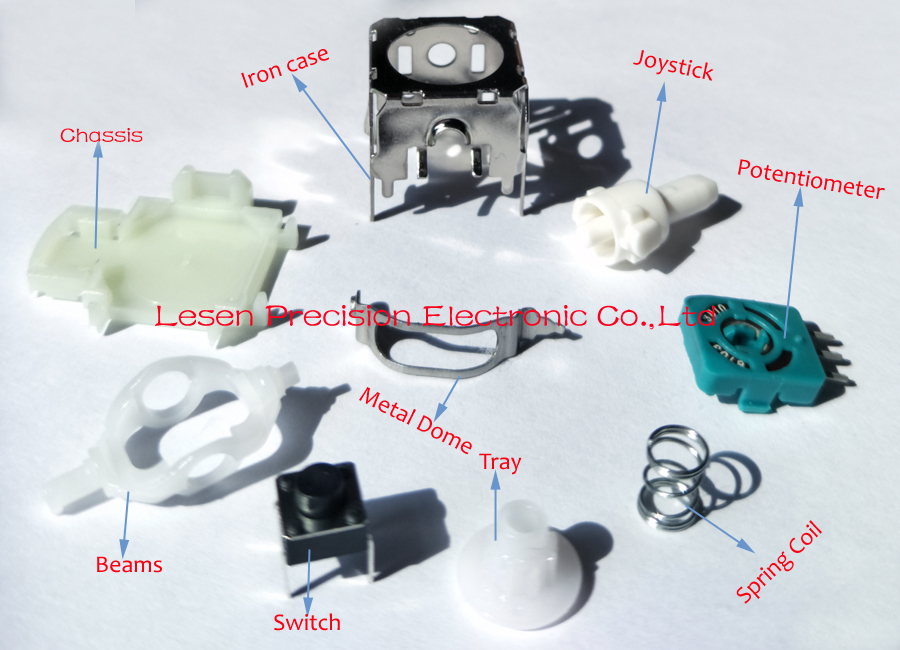

The joystick sensor consists of nine parts, including rocker, beam, spring, metal dome, iron case, base, potentiometer and switch combination.
Joystick sensor model is widely used in remote control aircraft, toy products, because of its simple operation was deeply loved by young people in real life, the following is composed of LeSen precision electronic of joystick sensor do a simple introduction.As shown below.

The joystick sensor consists of nine parts, including rocker, beam, spring, metal dome, iron case, base, potentiometer and switch combination.
1. Joystick can be divided into iron and glue stick. It is used for conducting human forces in order to control the direction, and it can operate 360 degrees.
2. Beams belongs to plastic products, with a handle is used to control the rocker potentiometer switch control of the model, when people press rocker, rocker bearing compression bar down contact switch controller to achieve control of the switch.
3. Spring coil, iron products, used for the ballast power under the joystick, so that the switch can be returned.
4. Metal dome, There are two kinds of products in the product (copper and iron), the same performance, with the joystick to achieve 360 degree operation automatically.
5.The tray is used for the center position of the rocker connecting the fixed rocker with the spring coil.
6. Iron case, iron products can be selected according to the user's demand.
7. Chassis, the plastic products, and the iron shell assembly to encapsulate the function of the model, the second most important function is to install the switch.
8. Potentiometer, two potentiometers to change the potentiometer resistance by rotating the rocker, and control the Angle of the model.
9. Switch, the load can be divided into three types :50g switch,100g switch,160g switch; Its main function is to control the model's opening and closing.
If you are a drone or remote control products, believe that will be of great help to you, give you a better understanding of its physical structure and operating functions, if you have any question can contact us, we will make a comprehensive explanation for you.
