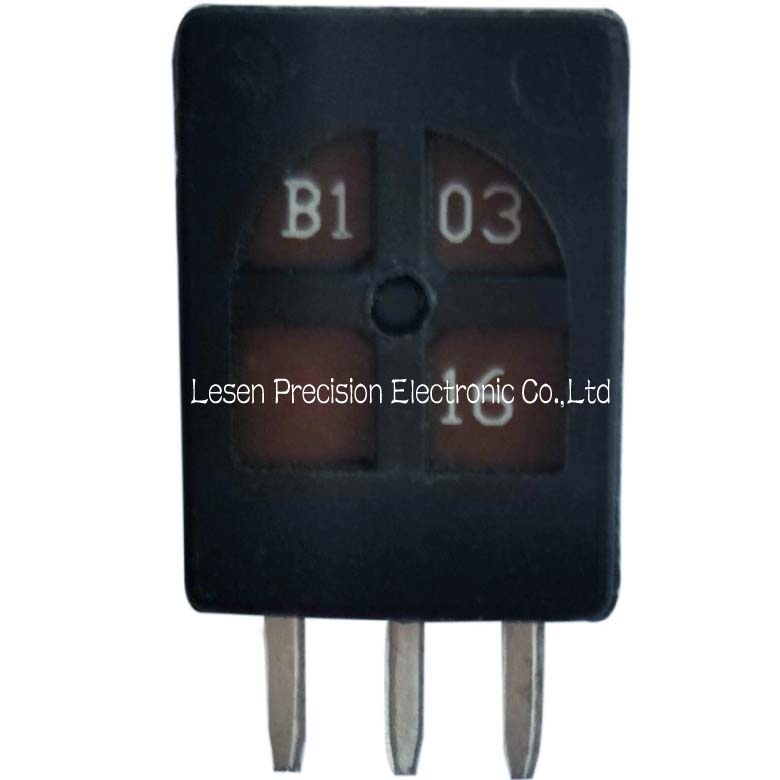

B10K potentiometer can also be called rotary potentiometer 14 degrees, model B10K16, for XBox, 360 handle trigger
potentiometer, LT-RT button carbon film potentiometer
Adjustable potentiometer properties
1 use temperature range
-10°C to +75°C
2 test conditions
Normal temperature (temperature 5~35°C)
Normal humidity (humidity 45~85%)
Normal pressure (Air pressure 86~106kPa)
3 Rated power: 0.025W
4 resistance adjustment method: rotary
5 resistance change mode: X type (linear type)
6 Nominal resistance: 10K
7 Resistance tolerance ± 0.002%
8 Operational Life (Reliability) Test:
Under no load, 300,000 times after reciprocating 10 to 15 times per minute
The total resistance changes ≤ the initial value of ± 20%. Noise: less than 68mV
9 storage temperature range: -20 °C ~ +80 °C

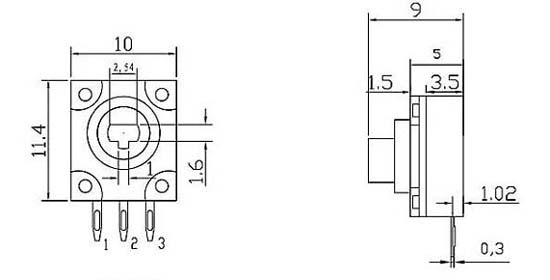

The adjustable potentiometer is in fact not very different from the conventional potentiometer, we can see through the
adjustable potentiometer drawing, it has three pins.

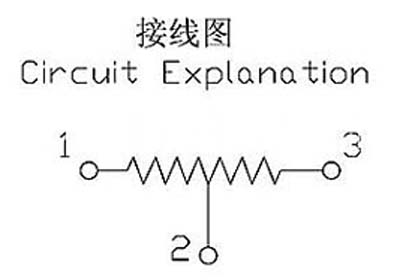

The connection of the adjustable potentiometer three pins is as shown below.
Through the above connection of the adjustable potentiometer pin diagram and
design drawings and product parameters, we have a certain degree of understanding
of the T-port potentiometer has deepened.
Selecting the product to see the strength of the factory and the quality of the product,
the source factory is very important, that is, the price of the intermediate supplier is saved,
