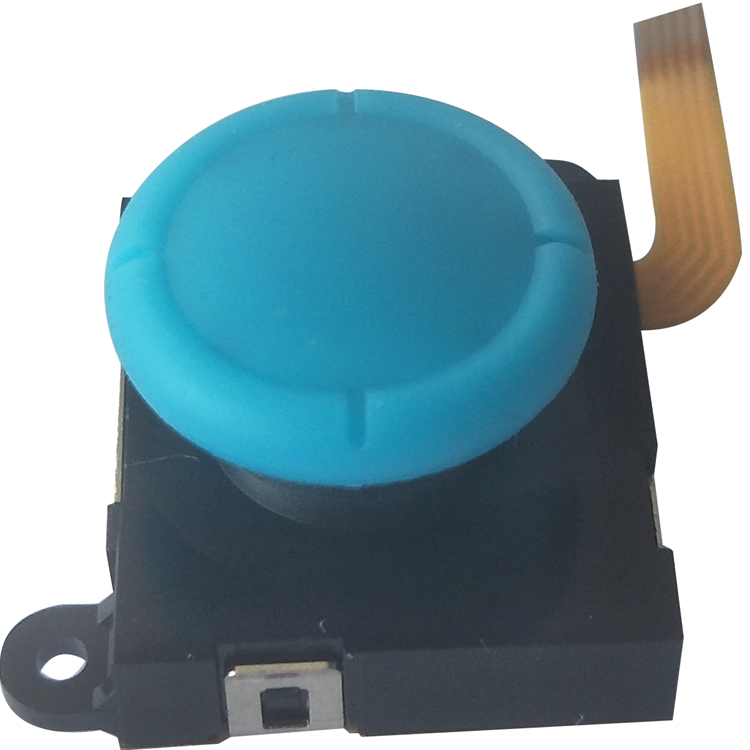

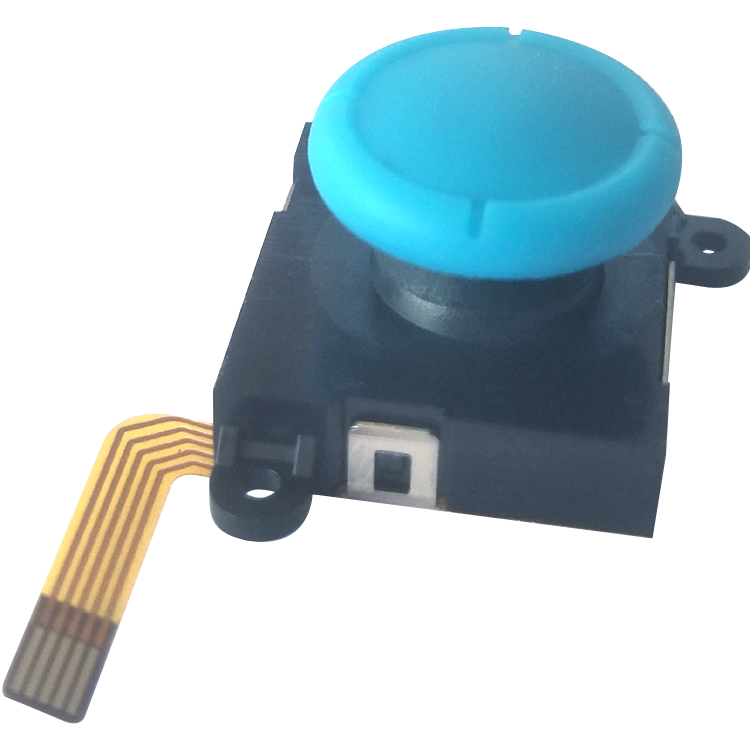

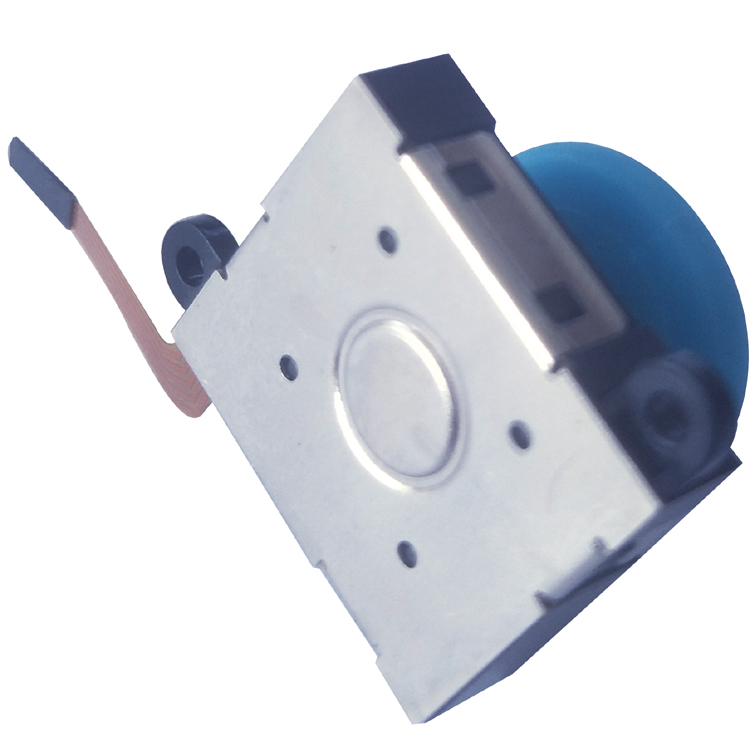

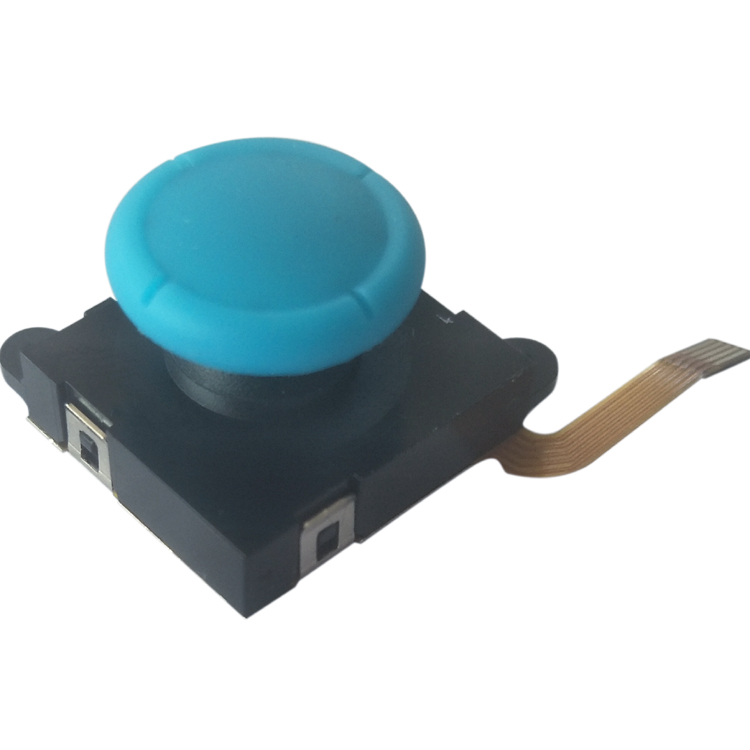

3D Joystick Analog Thumb Stick General

This specification applies to the joystick which carbon composition resister,used in electronic equipment.
1-2 Standard atmospheric conditionsronic equipment.
Unless otherwise specified,the standard range of atmospheric conditions for making measurements
  and tests is as follows:Ambient temperature ：15℃ ~ 35℃.
Relative humidity：25% ~ 85%
Air pressure：86 KPa ~ 106 KPa
If there is any doubt about the results, measurements should be made within the following limits:
Ambient temperature ：20℃±1℃
Relative humidity ：63% ~ 67%
Air pressure ：86 KPa ~ 106 KPa
1-3 Operating temperature range  ：-10℃ ~+70℃
1-4 Storage temperature range  ：-30℃ ~+80℃
2.Construction
2-1 Dimension  ：Refer to attached drawing
Operation angle of lever. Add a fit force on the lever top to push it to max. angle of each direction when lever is released and reset position.
The Joy-con analog joystick is suitable for the left and right joysticks. Repair worn out of control, insensitive and drifting analog joysticks.
