PS4 controller dismantling graphic tutorial for replacing joysticks and buttons

Date:2018-04-29 16:47:12        Hits:478
My DualShock4 handle has recently been a little faulty and the right stick has often moved automatically. It's okay to play dark, but playing the main-angle shooting game is almost unbearable. Buying a new handle is still too expensive, so he decides to become a Repairer. He can see if he can repair it. Did not expect repairs that were actually successful. This tutorial is for replacing other PS4 accessories, mushroom head rockers, and other symptoms. In addition, there is a risk of dismantling, hands-on need to be cautious.
My PlayStation 4 handle has recently been a little faulty and the right stick has often moved automatically. It's okay to play dark,
but playing the main-angle shooting game is almost unbearable. Buying a new PS4 Controller is still too expensive, so he decides
to become a Repairer. He can see if he can repair it. Did not expect repairs that were actually successful. This tutorial is for replacing
other PS4 accessories, mushroom head rockers, and other symptoms. In addition, there is a risk of dismantling, hands-on need to be cautious.

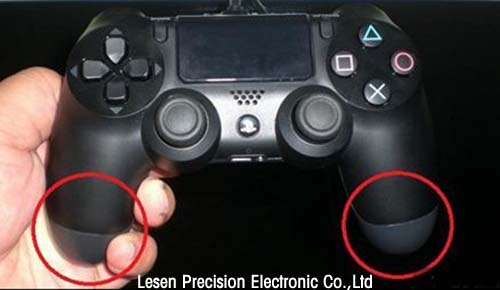

The first step is to remove the four screws on the back. This is not necessary. The required screwdriver is a Phillips screwdriver
that is one turn smaller than the standard. It should be common in the home. After dismantling the four screws, use one hand to
hold the main body from the position of the red circle in the figure below, and hold the other material in the other hand to gently
push down and push it. This strength is not easy to express in words. In short, it is not brute force.

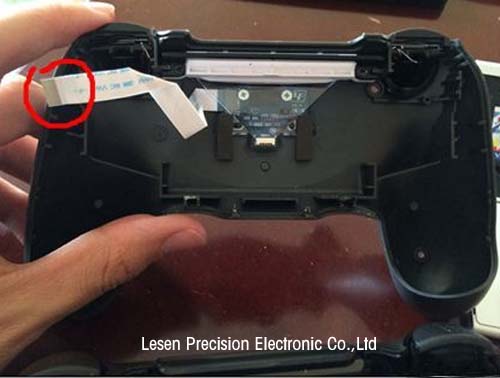

The figure below is the shell under the handle, the red circle is the data line of the top breathing light, gently pull out.

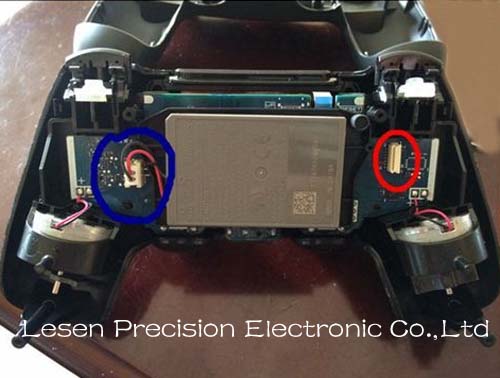

After removing the bottom shell as shown below, the red circle position is the data line interface shown above. When you take it back, pay attention to it. The right side of the figure is the gold finger direction. Then remove the battery, the interface in the blue circle position, pay attention to left and right activities when pulling.
After removing the bottom shell as shown below, the red circle position is the data line interface shown above. When you take it back, pay attention to it. The right side of the figure is the gold finger direction. Then remove the battery, the interface in the blue circle position, pay attention to left and right activities when pulling.
After removing the bottom shell as shown below, the red circle position is the data line interface shown above. When you take it back,
pay attention to it. The right side of the figure is the gold finger direction. Then remove the battery, the interface in the blue circle position,
pay attention to left and right activities when pulling.


After removing the battery, it looks like the picture below, then remove the motherboard screws in the red circle.

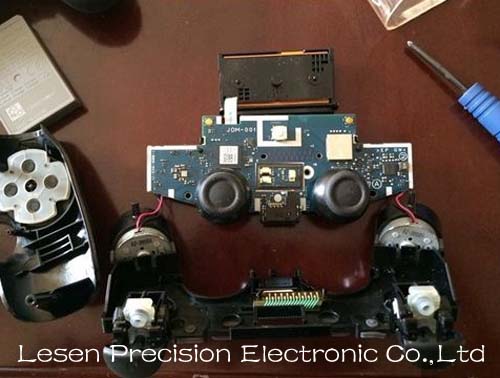

After dismantling the board in the picture above, it can be completely decomposed. The following figure is the main control circuit board.

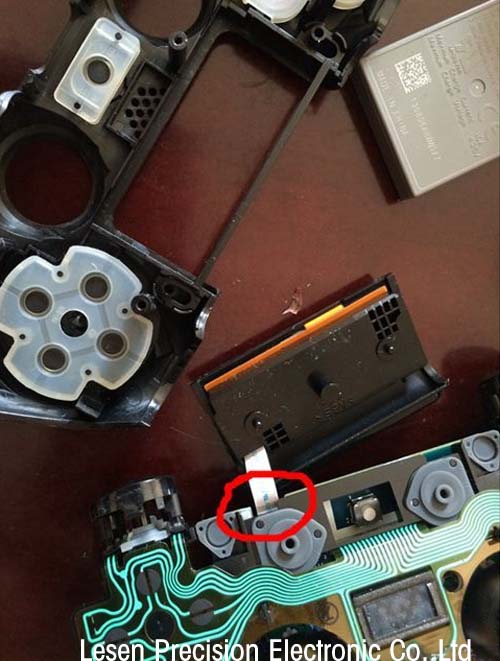

The data line at the red circle is connected to the touchpad and can be gently pulled out.

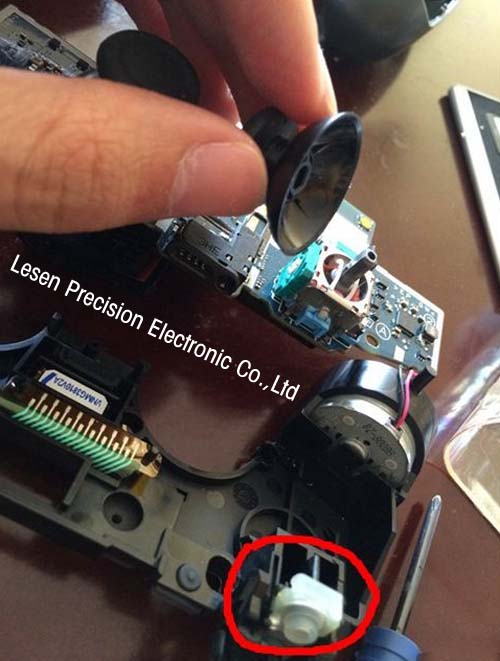

The rocker mushroom head can be replaced by this step. Pay attention to the rubber area of the red circle in the picture below. It
is very easy to knock it in here. Remember to put it back, otherwise L2 and R2 will fail.

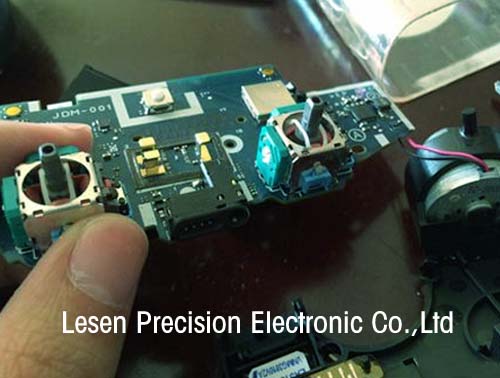

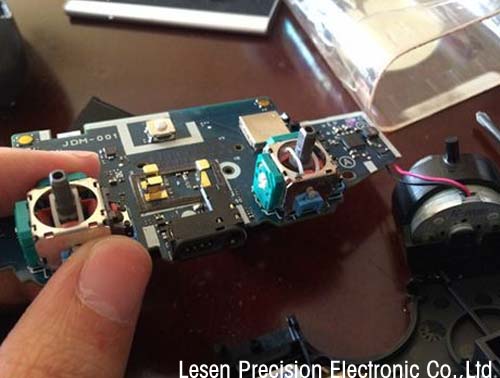

Rocker base close-up, see the mechanical structure of the rocker is quite complex. My handle is stuck in this small thing, just blow it off.

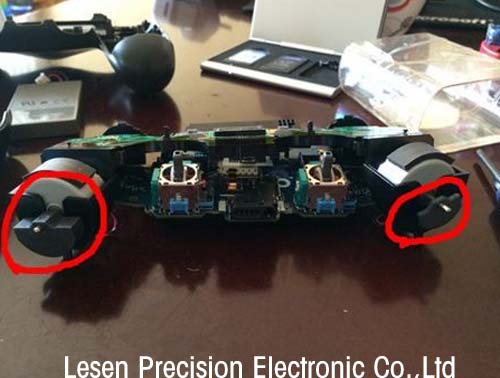

This picture shows two vibrating motors. It's worth noting that the left and right handles have different weights. The left side is obviously larger than the right side. In order to give the handle a better feel, Sony has repeatedly tested this detail many times.
This picture shows two vibrating motors. It's worth noting that the left and right handles have different weights.
The left side is obviously larger than the right side. In order to give the handle a better feel, Sony has repeatedly
tested this detail many times.

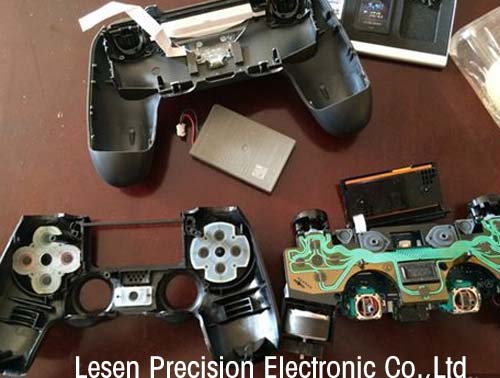

Part of the family portrait.
If you need to replace other keys, simply replace it in the lower left part, it is very easy and will not repeat them.

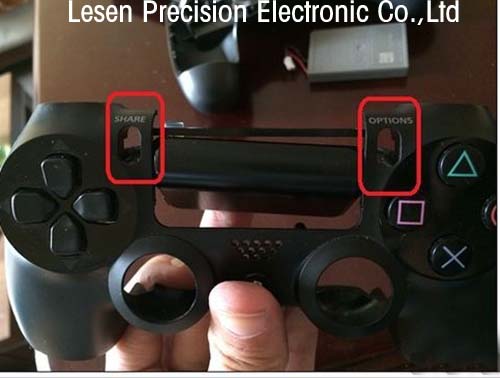

Then reverse the installation can be reversed. Note that the Share and Options buttons are very easy to drop
and take care not to lose. In addition, these two keys are not the same, but there is a foolproof design.

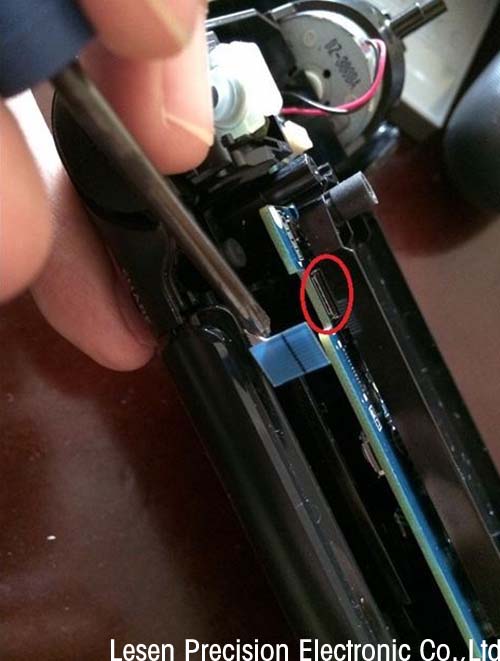

The red circle is the position of the touchpad's data line. When you take it back, pay attention to this place.
Hold the blue plastic piece to insert it back. There is no other difficulty.


Well, the places that need attention are all mentioned. It's easy to put them back and it's not much to say.
